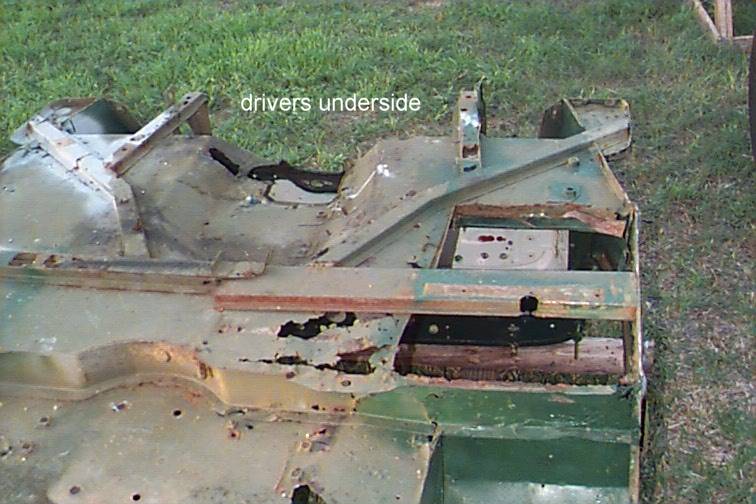

Driver side underneath. I removed the plate that was welded in over the fuel tank well. Which ain't there... |  |

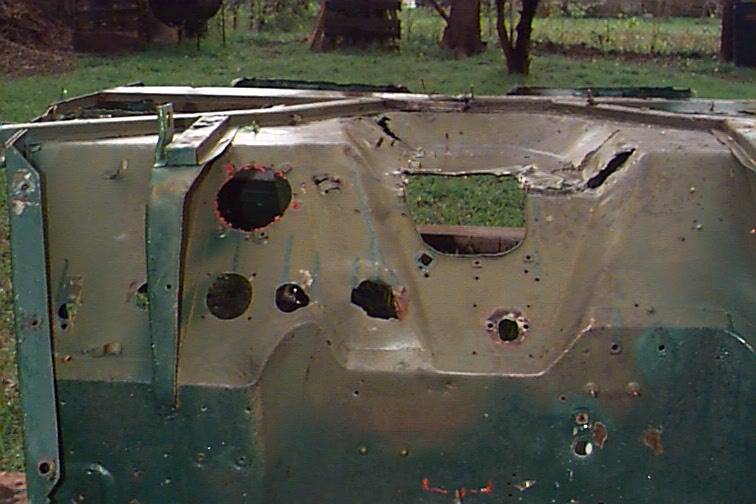

Driver side floorpan from front |
 |

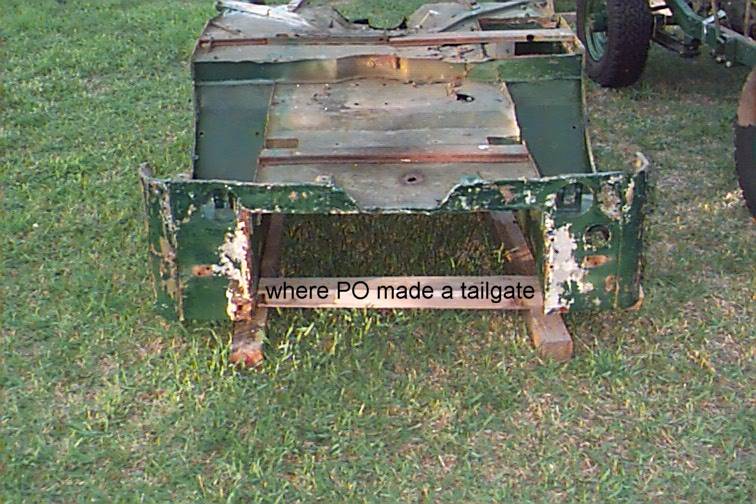

Where a PO made a tailgate, took a lot of wirebrushing bondo, and grinding angle iron to get the old patches out. |
 |

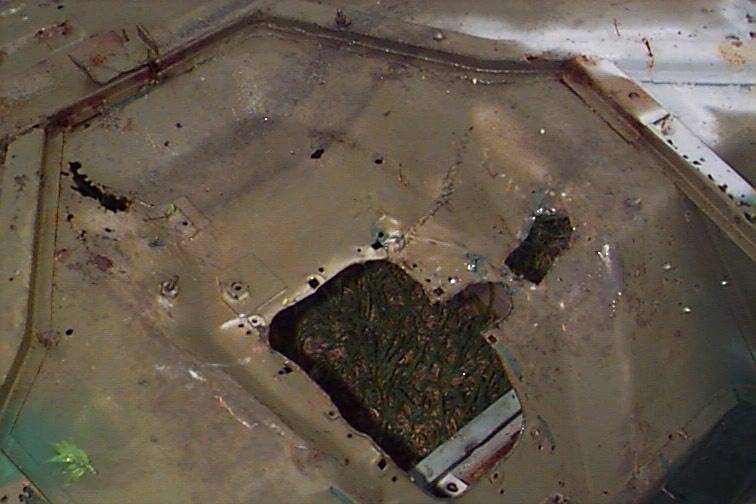

Transmission floorpan |
 |

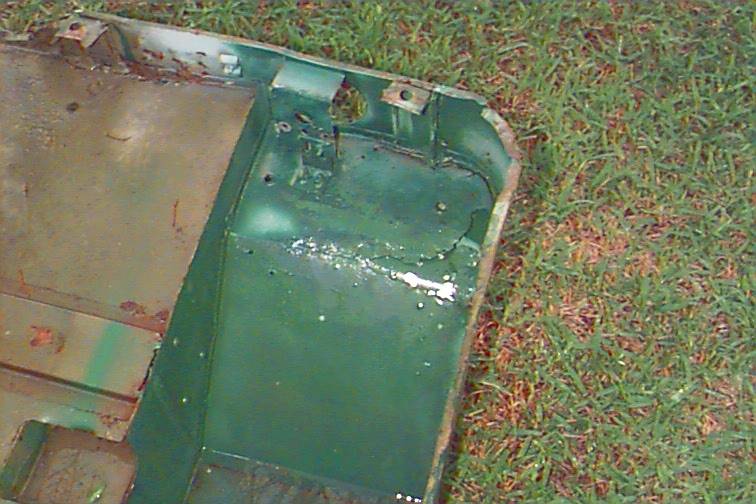

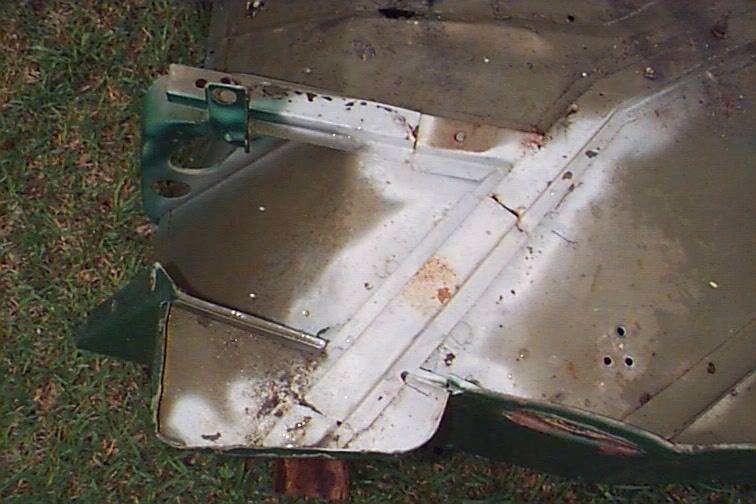

Riderside underneath | (Reserved for rear underside pan pic) | |
 |

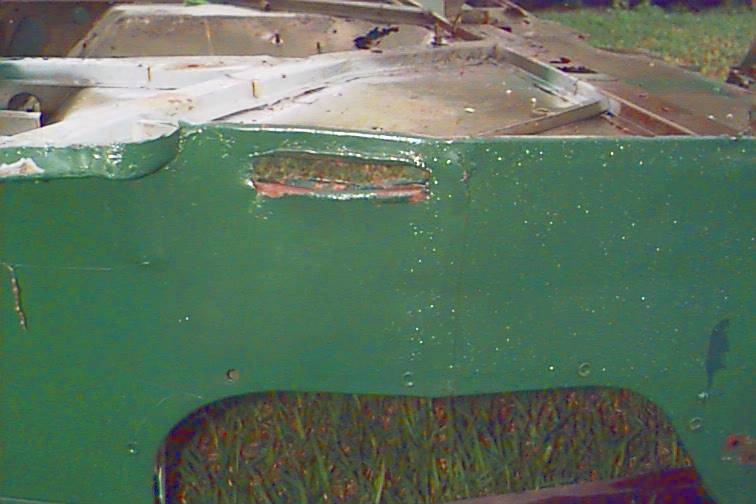

Rider Side Outside |  |

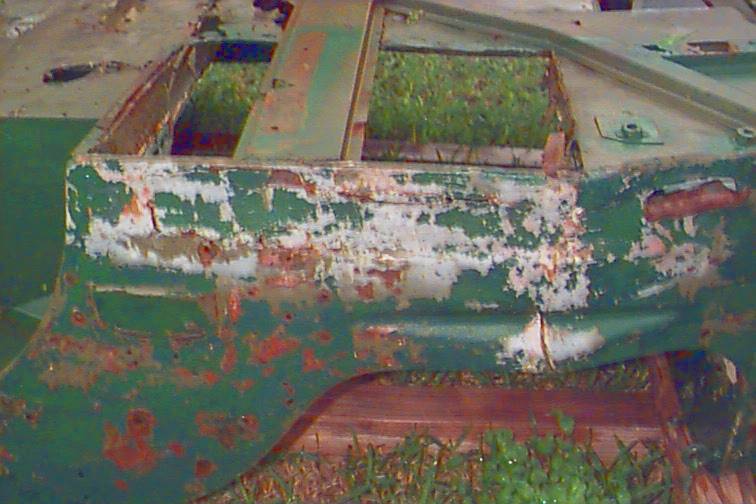

Driver Side outside, been using paint stripper to find the bondo, about 3-4 lbs in this area, seam is broken also |
 |
Rider side in wheelwell driver side same area looks about the same |  |

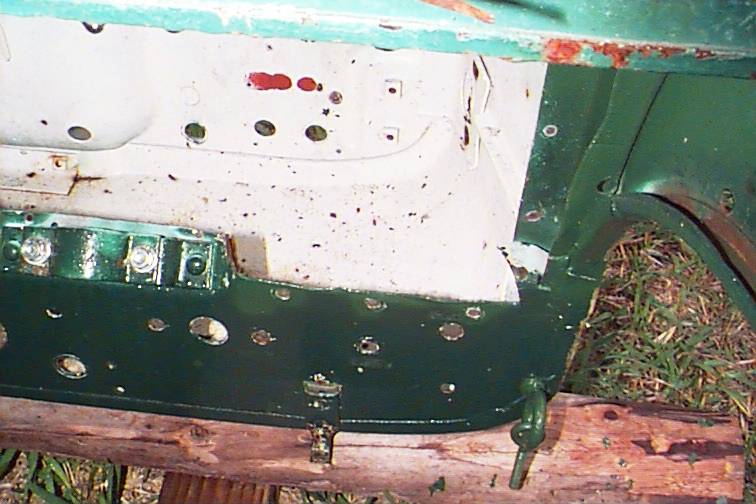

View of drive side of dash, where it was chopped out on bottom seam, by steering wheel clamp |
